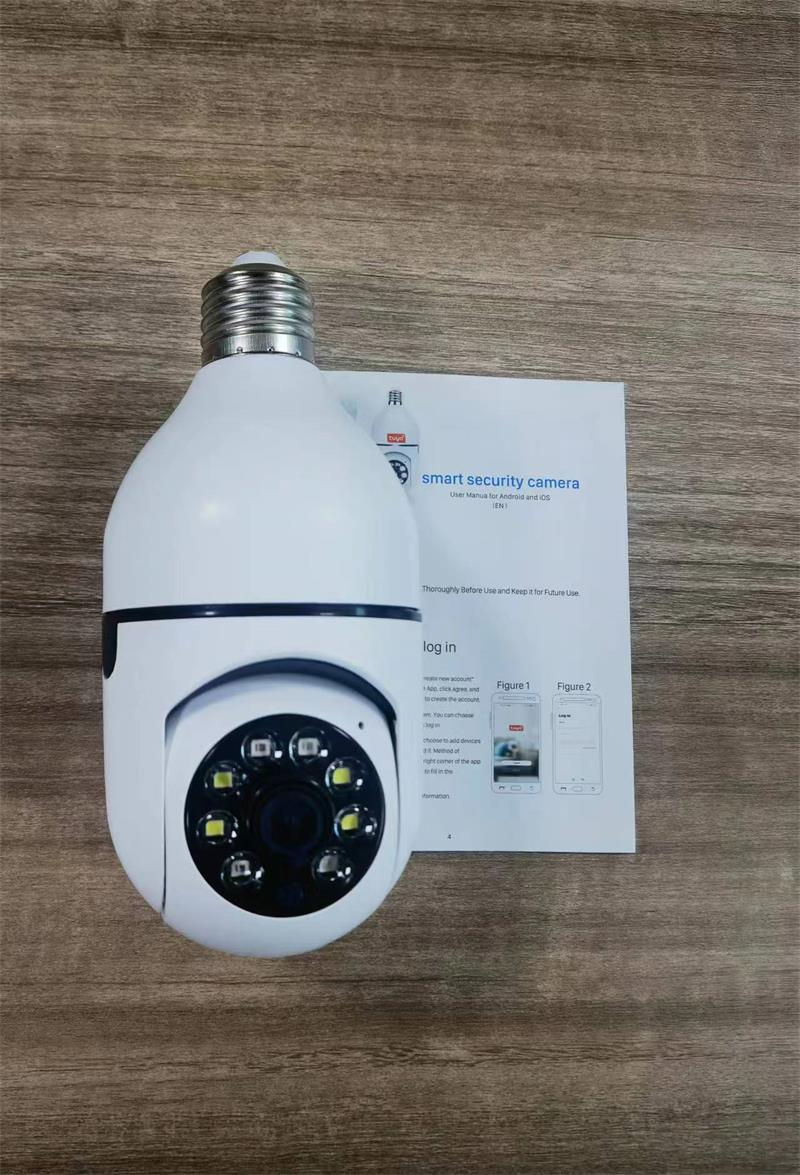

Specification of Tuya smart life 3MP resolutions(E27 E26)

Device working with the APP

Tuya Samrt

 pixels:

3MP

Mini.Illumination

color : 0.01Lux @(F1.2,AGC ON); 0 Lux with IR                   Black: 0.001 Lux @ (F1.2,AGC ON),0 Lux with IR

LENS

definition

3MP

fixed:

3.6mm

Diagonal Angle:

106.3°

level Angle:

 80.4°

vertical:

 58.7°

Night Vision

LED

PTZ: 4pcs white LED and 4pcs red LED

Day night mode

built-in IR-CUT,Auto change with IR-CUT removable

IR Distance

15-20 meters

Video

System of signal

PAL/NTSC

Image Compression

H.264I

lmage Frame Rate

15fps

Resolution of eah len

3MP 1500x2000p@12fps;800*896@12fps

Flip image

Flip

Audio

Compression

G.726/AAC.  Audio code rate: 8Kbps, 16bit

Input/Output

Built-in MIC and Speakers, support two way audio

Network

wireless

IEEE802.11b/g/n 2.4GHZ

Wireless Security

WEP,WPA,WPA2

Ethernet

without a port of RJ45 ,not supported LAN

Connect method

Wireless connection,AP hotspot connection, recording

Antenna mode

Buildin a Antenna

Audio Input

Built-in microphone G.711A

Audio output

built-in 1 pcs * 8Ω*1W

PTZ Angle

revolving :

Level 355°  vertical 90°

Preview Mode

watch by full screnn or half screen on the mobile

Function

AI feature

Support voice monitoring, intercom, motion detection, voice detection alarm

safety protection

By passwrod+Share method

Record method

Timing Record, time Record, alarm Record

Type of alarm

APP push machine horn alarm

Save way of Record

7X24H video recordings, never miss every moment

Storage

Extra memory of TF card

Record to the TF Card by 8G/32G/64GB/128GB

Cloud storage

the buyer pay monthly fee and annual fee,save the video or picture to the Servers

will used place

6GB/ every day

networking protocol

TCP/IP, UDP, P2P, DNS, DHCP, RTSP

Pot protecol

ONVIF

Alignment Stages

supported P2P and transmit

Distance

Daytime viewing distance

0-50 meter

White LED
